High-volume processing plants continuously face a critical financial challenge: energy-intensive moisture elimination. Specifically, sectors like grain processing, starch recovery, commercial livestock feed production, and biomass recycling depend heavily on continuous drying. However, conventional direct-hot-air systems frequently burden facilities with excessive fuel consumption, thermal dissipation, and complex dust filtration requirements.
To solve these operational bottlenecks directly, Genex Tech Industries engineers advanced Tube Bundle Dryers. Designed specifically as continuous, indirect contact drying systems, these units effortlessly process granular, fibrous, and organic bulk materials.
Understanding the thermal mechanics behind Genex Tech Industries tube bundle technology allows plant operators to dramatically boost processing efficiency. As a result, facilities can achieve optimized heat utilization, lower operational overhead, and ensure delicate handling for temperature-sensitive feedstocks.
Furthermore, for facilities seeking complete operational lines, Food Tech Projects acts as a comprehensive integration partner. Together, working alongside Genex Tech Industries, they engineer and deliver end-to-end dehydration systems from initial concept through commission.

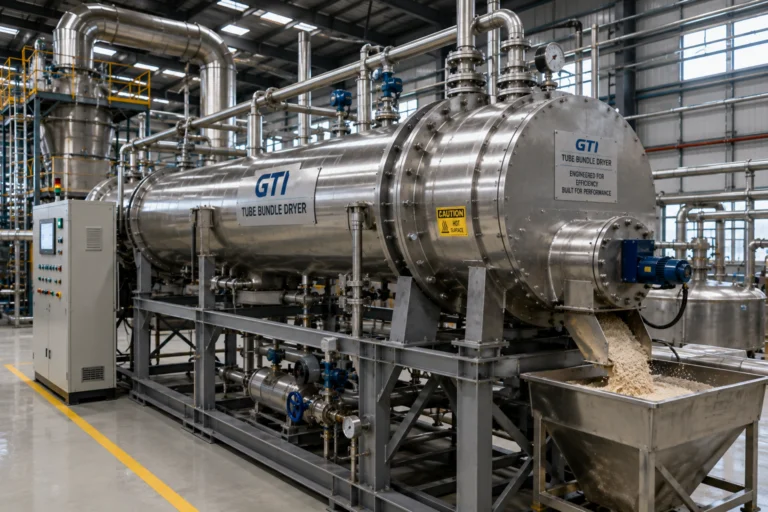

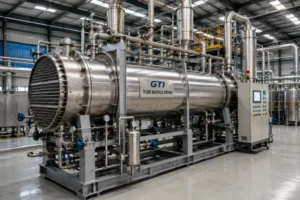

What is a Genex Tech Industries Tube Bundle Dryer?
Essentially, a Genex Tech Industries Tube Bundle Dryer is a continuous, indirectly heated thermal processing system designed to extract moisture from free-flowing or semi-granular materials with extreme precision.
Conversely, unlike direct hot-air dehydrators that expose the raw product directly to open combustion gases, a Genex Tech Industries system utilizes pure thermal conduction instead. Specifically, steam or thermal oil circulates inside an enclosed, rotating matrix of parallel steel tubes, thereby transferring heat to the material indirectly.
+-----------------------------------------------------+
Wet | [==========] [==========] [==========] [======] | Dry
Feed ->| [==========] [==========] [==========] [======] |-> Material
| ================ TUBE BUNDLE =================== | Discharge
+-----------------------------------------------------+
^ |
Steam Input Condensate Out
Architectural Breakdown: Key System Components
The durability and performance of Genex Tech Industries equipment rely on heavy-duty, purpose-built components:
-
The Rotating Tube Matrix: First, dozens of seamless steel tubes are precision-welded into heavy end-plates. Consequently, this forms a rigid, high-pressure cage capable of handling demanding steam loads continuously.
-
Insulated Outer Housing: Second, a stationary, thermal-shell enclosure completely seals the rotating bundle. Thus, this structure retains ambient heat while simultaneously protecting factory personnel.
-
Heavy-Duty Steam Rotary Joint: Third, a specialized mechanical seal introduces high-pressure steam into the moving bundle smoothly. Meanwhile, it expels condensate continuously without pressure loss.
-
Agitation Flights & Scoops: Additionally, custom-engineered lifters are mounted across the tube layout. Therefore, as the bundle rotates, these flights gently lift and distribute material across the hot tube faces evenly.
-
Exhaust Vapor Chamber & Sweep Fan: Finally, a top-mounted collection hood draws out evaporated moisture using low-velocity carrier air. Because of this low air speed, dust carryover remains exceptionally minimal.
Core Operating Mechanism
The engineering foundation of Genex Tech Industries systems balances indirect thermal conduction with mechanical material transport step-by-step:
-
Thermal Fluid Injection: To begin with, high-pressure steam or hot liquid media enters through a heavy-duty rotary joint directly into the enclosed tube bundle built by Genex Tech Industries.
-
Mechanical Agitation: Subsequently, the tube assembly rotates at low RPM inside the stationary housing. Meanwhile, integrated paddles and lifters constantly turn the incoming wet material over the heated surfaces.
-
Conductive Moisture Evaporation: As a direct result, as the raw product makes contact with the hot metal tubes, water content evaporates rapidly without exposing the material structure to thermal shock.
-
Low-Velocity Vapor Removal: In addition, because heat is delivered via conduction rather than forced air, only a modest flow of sweep air is required to carry away water vapor efficiently.
-
Controlled Longitudinal Discharge: Eventually, material moves steadily toward the exit port, reaching the targeted final moisture percentage verified by Genex Tech Industries control systems.
Key Advantages of Genex Tech Industries Tube Bundle Dryers
1. Exceptional Thermal Efficiency
Because the heating medium stays entirely isolated inside the Genex Tech Industries tube core, thermal losses are minimized. Moreover, nearly all latent heat transfers straight into the wet product. Thus, this yields significantly lower energy consumption per kilogram of evaporated water compared to flash or rotary drum dryers.
2. Gentle Material Treatment
High velocity and excessive agitation can easily cause delicate materials to degrade into fine dust. However, Genex Tech Industries tube bundle dryers operate at slow rotational speeds. Therefore, this gentle action successfully preserves bulk density, particle structure, and overall product quality.
3. Reduced Exhaust Treatment Costs
In comparison, direct-air drying systems generate huge volumes of dust-laden air, consequently requiring expensive baghouses, wet scrubbers, and multi-cyclones. On the other hand, Genex Tech Industries systems require minimal sweep air. As a result, this drastically lowers air filtration costs and reduces the overall equipment footprint.
4. Compact Footprint, Maximum Heating Surface
By packing dozens of thermal tubes into a single rotating assembly, Genex Tech Industries delivers a remarkably high heat-transfer area. Hence, this compact design saves valuable floor space inside modern processing facilities.
Comparative Analysis: Indirect vs. Direct Drying Methods
| Technical Indicator | Genex Tech Industries Tube Bundle Dryer | Standard Direct Hot-Air Dryer |
| Primary Heat Mechanism | Indirect Conduction (via hot tube walls) | Direct Convection (via hot air flow) |
| Thermal Consumption | Extremely Efficient (~2,600 to 2,800 kJ/kg water) | High Consumption (~3,500 to 4,500 kJ/kg water) |
| Exhaust Gas Volume | Very Low (sweep air only) | Extremely High (full air stream) |
| Dust Control Setup | Minimal filtration needed | Heavy baghouse & cyclone setup |
| Product Preservation | Gentle rotation preserves structure | High shear creates excess fines/dust |
Industrial Applications
In practice, Genex Tech Industries tube bundle dryers perform exceptionally well across a wide range of free-flowing and semi-sticky bulk materials:
-
Starch & Grain Processing: Corn germ, gluten meal, starch fiber, spent grains.
-
Distillation & Fermentation: DDGS (Distillers Dried Grains with Solubles), brewer’s yeast residues.
-
Biomass & Green Energy: Wood shavings, sawdust, bagasse, bio-pellet feedstocks.
-
Agro-Processing & Feed: Oilseed cakes, soy meal, aquaculture feed, pet food ingredients.
-
Chemicals & Minerals: Synthetic polymers, inorganic salts, fine chemical cakes.
Why Partner with Food Tech Projects and Genex Tech Industries?
Deploying a commercial drying circuit ultimately requires accurate sizing, thermodynamic modeling, and seamless integration into existing process flows.
For this reason, for turnkey production setups, Food Tech Projects acts as your complete solution provider. Specifically, they collaborate directly with Genex Tech Industries to design, build, and implement fully integrated dehydration systems.
Furthermore, from initial pilot testing and engineering design to fabrication, commissioning, and optimization, Food Tech Projects and Genex Tech Industries work together to ensure your line achieves maximum throughput with minimum operational expenditure.
Elevate Your Dehydration Efficiency Today
In conclusion, upgrading your moisture reduction line with a Genex Tech Industries Tube Bundle Dryer provides an energy-efficient, scalable solution for modern industrial processing.
