Desiccated Coconut Machinery

Desiccated Coconut Machinery

At Gemtech Projects LLP, we are the largest manufacturer and exporter of Desiccated Coconut Machinery. GEM is highly recognized by the Engineering Export Promotion Council under the Ministry of Commerce, Government of India. GEM commands the highest share of the export market for coconut machinery from India. GEM has the resources and infrastructure to undertake complete projects for the manufacture of High Fat Desiccated Coconut and Low Fat Desiccated Coconut on a turnkey basis. GEM has numerous overseas installations of its desiccated coconut machinery to its credit, which includes Sri Lanka, Philippines, Indonesia, Thailand, Vietnam, Fiji, Mozambique, Mexico, Ivory Coast etc.

Why Choose the Advanced DC Dryer From Gemtech Project LLP?

Our Desiccated Coconut Dryer or the DC Dryer machine is capable of processing matured coconut into highly refined, premium quality powder. There are two types of desiccated coconut – high fat and low fat. You can use the desiccated coconut powder as toppings and fillers, in confectionaries, puddings as an ingredient, especially while baking biscuits, cakes, snacks and cookies.

Feature Rich and Efficient DC Dryer

We are the reliable manufacturers of DC Dryers, having established a reputation in the industry with our exquisite craftsmanship. Our machines are built for high production, operator comfort and low fuel consumption. We export the DC Dryer coconut machinery to different countries, ensuring to meet internal standards and requirements.

Nut Counter

Capacity upto 300 nuts per machine

• Easy counting system
• Nut holding bucket with lifting conveyor
• Manual inspection of damage nuts
• Nuts fiber collection tray under the conveyor

Deshelling Machine

Capacity 350 nuts – 425 nuts per hour

• Easy de shelling with capacity 6-7 nuts per minutes.
• Less maintenance with good quality cutting tools bit.
• Easy adjust drive unit.
• Safety cover for the cutting disc .
• Horn adjusting arrangements for the operator.

Pre Cutter (Decapping Machine)

It cuts coconut into 2 equal halves

• Cutting abalibility 3-4 pic of a coconut.
• Less maintenance .
• Stainless steel cutting knife.
• Including feed and discharge hopper.

Screw Conveyor

Fully stainless steel screw conveyor with washing arrangement.

• Screw conveyors can have multiple inlet and discharge points.
• Screw conveyors are capable of handling and lift a great variety of bulk materials.
• Zero maintenance with the screw .
• Can be fitted any angle.

Desiccated Coconut Cutter / Desiccated Coconut Grinder

Capacity upto 1000 kgs of wet coconut meat per hour.

• Easy operate.
• Easy adjust for various size .
• Automatic feed press system with the feed screw.
• Operation – all kinds of dc , coconut chips , coconuts theard .

Vibratory Fluid Bed Dryer – 4 Models Available

• Junior vfbd 250 – 300 kgs of made desiccated coconut per hour
• Standard vfbd 500 – 550 kgs of made desiccated coconut per hour
• Jumbo vfbd 700 – 800 kgs of made desiccated coconut per hour
• Super jumbo 850 – 1000 kgs of made desiccated coconut per hour



Steam Blancher

Unique design for efficient sterilisation of white coconut meat

• Easy to use.
• Complete with feed and discharge steam lock rotary valve .
• Easily adjust product travel time with help of vfd drive .
• Highly effected to kill bactiria gowth .



Combination Fluid Bed Dryer

Unique tray type fluidized bed technology to dry desiccated up to 1000 kgs / hr. various sizes and models available depending upon customer’s requirements. Suitable for desiccated coconut powder, coconut chips, desiccated coconut threads, copra, virgin coconut oil dc.

• Fluidized bed with tray technology to dry desiccated up to 1000 kgs / hr.
• Duct collecting system with duplex cyclone.
• Suitable for desiccated coconut powder, coconut chips, desiccated coconut threads, copra, virgin coconut oil dc.
• Less power consumption.



Band Dryer

Highly efficient technology for massive production of desiccated coconut. Gem manufactures band dryer of capacity upto 1600 kgs / hr. Also suitable for desiccated coconut chips, threads, copra, virgin coconut oil production.

• Apron tray with air circulating fan technology to dry desiccated up to 1500 kgs / hr.
• Easy operate & control.
• Suitable for desiccated coconut powder, coconut chips, desiccated coconut threads, copra , virgin coconut oil dc etc.
• Highly effected drying.

Apron Tray Type Cooling Conveyor

  • Easy cooling & convey the materials.
  • Easy operate & control.
  • Suitable for desiccated coconut powder.
  • Highly effected drying.

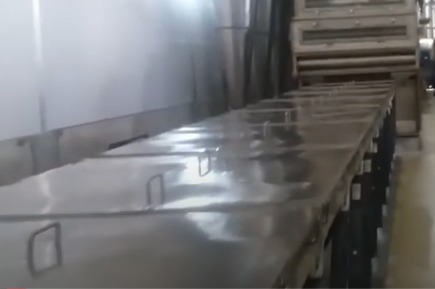

Vibratory Cooling Table

Simple yet robust machine for cooling desiccated coconut.

• Easy cooling & convey the materials.
• Less maintenance.
• Suitable for desiccated coconut powder, coconut chips, desiccated coconut threads, copra dc, virgin coconut oil dc.
• Light weight & stainless steel contract parts.



Mesh Type Cooling Conveyor



High capacity machine upto 1000 kgs of made desiccated coconut per hour for cooling desiccated coconut after dryer.

• Effective cooling.
• Perforate belt conveyor.
• Suitable for desiccated coconut powder, coconut chips, desiccated coconut threads, copra dc, virgin coconut oil dc.
• Up turner & auto belt cleaning arrangement.

Grading Machine

Simple grading machine for capacity upto 500 kgs / hr

• Effective grading with 5 layer mesh.
• Highly capacity grader up to 1000 kg/hr.
• Easy detachable mesh for cleaning.
• 5 layer mesh with 6 discharge point.
