The industrial corridor across South India represents a fast-growing manufacturing hub. Consequently, regions expand rapidly in pharmaceuticals, food processing, coconut exports, and chemical synthesis. Therefore, these plants require reliable thermal processing and moisture removal infrastructure.

Because moisture control directly governs product stability, bulk density, and shelf life, processors cannot rely on standard off-the-shelf equipment. Custom systems engineered by pioneers like GENEX Tech Industries LLP provide precise thermodynamic control. Specifically, they operate through specialized divisions like Food Tech Projects and GTI Dryers. Furthermore, these continuous lines deliver high energy efficiency, maximum yield, and export compliance.

1. Thermodynamic Fundamentals & Industrial Applications

Thermal dehydration relies on heat and mass transfer to strip water. In drying theory, moisture falls into two main categories:

• Unbound Moisture: Water that exerts full vapor pressure. As a result, it evaporates freely from saturated material surfaces.

• Bound Moisture: Water trapped inside cell walls or capillary lattices. Thus, it requires high thermal energy to drive internal diffusion.

During the initial constant-rate period, surface water evaporates freely. Meanwhile, ambient temperature, air velocity, and surface area govern this rate.

As surface moisture depletes, the system subsequently enters the falling-rate period. At this stage, internal diffusion to the surface becomes the primary limiting factor. Therefore, processors must use elevated thermal gradients or mechanical fluidization. In turn, this prevents internal structural damage, scorching, or case hardening.

Across South Indian production hubs, distinct industrial sectors require specialized thermal engineering strategies:

• Biopharmaceuticals & Fine Chemicals: Systems require cGMP compliance and mirror-polished SS316L stainless steel. As a result, this design eliminates moisture without denaturing active pharmaceutical ingredients (APIs).

• Agro-Commodities & Coconut Derivatives: Plants require continuous dryers to lower high initial moisture levels. In particular, systems drop moisture from 55% down to 2%. Consequently, this preserves natural oil content, color, and structural integrity.

• Heavy Minerals, Biomass & Sludge: High-tonnage machinery strips water from paper mill sludge, chemical effluent, and mining slurries. In addition, this process slashes disposal costs and supports waste-to-value conversion.

2. Main Industrial Drying Technologies & Operating Principles

Refractance Window Dryer (RWD) Systems

The Refractance Window Dryer enables continuous low-temperature dehydration. For instance, it handles liquid feeds, fruit purees, herbal extracts, and sensitive bio-compounds.

Processing Sequence for RWD Technology:

1. First: Liquid slurry enters via an automated sanitary positive displacement pump.

2. Next: The spreader distributes liquid evenly onto a specialized heat-transparent belt. Meanwhile, film thickness stays between 0.5 mm and 1.5 mm.

3. Then: The belt floats continuously over a shallow trough of hot water. At the same time, the water stays just below boiling point, between 90°C and 95°C.

4. Subsequently: Thermal energy transfers conductively from hot water through the belt into the wet film.

5. Afterward: Rapid evaporation releases water vapor into a top-mounted exhaust hood under gentle negative pressure.

6. Following this: Material passes over an integrated cooling zone near the discharge end. Therefore, this drops film temperature rapidly below its glass transition point.

7. Finally: The chilled film becomes brittle and fractures against a doctor blade. Thus, it discharges clean, uniform flakes for packaging or milling.

Detailed Operating Principles:

• Thin-Layer Application: A continuous feed spreader distributes slurries into a micro-thin layer onto a moving belt.

• Conductive Heat Transfer: Thermal energy transfers conductively through the floating belt into the wet product layer.

• Latent Heat Protection: Rapid surface evaporation creates a natural cooling effect. Furthermore, the product stays cooler than the heating water. As a result, this protects sensitive bioactive molecules, vitamins, and pigments.

• Flake Discharge: Material passes over an integrated chill zone. Consequently, the cooled film fractures cleanly against an automated doctor blade.

Vibratory Fluid Bed Dryer (VFBD) Systems

The Vibratory Fluid Bed Dryer combines controlled vibration with positive pneumatic fluidization. In addition, it dries granular, crystalline, or shredded materials without particle degradation.

Processing Sequence for VFBD Systems:

1. To begin with: Wet granular material enters through a rotary airlock or volumetric feeder.

2. Simultaneously: Twin out-of-balance motors oscillate the frame while conditioned hot air enters the supply duct.

3. Thereafter: Hot air passes upward through a perforated distributor plate. Consequently, it lifts wet particles and breaks inter-particle liquid bridges.

4. During this stage: Suspended particles undergo rapid heat and mass transfer. Furthermore, they float smoothly along the drying chamber in a fluid-like state.

5. Meanwhile: High-moisture air exits through the top exhaust duct toward dust recovery cyclones and bag filters.

6. In conclusion: Dried granules exit through the discharge outlet at target moisture levels. In addition, integrated cooling zones drop product temperature prior to packaging.

Detailed Operating Principles:

• Pneumatic Fluidization: Hot air passes upward through a perforated distributor deck. Consequently, it suspends wet particles in a buoyant, fluid-like state.

• Vibratory Conveying: Twin out-of-balance vibratory motors impart controlled directional motion. Thus, they move the fluidized bed forward smoothly regardless of feed variations.

• Homogeneous Mass Transfer: Direct contact between heated air and suspended particles ensures uniform heat transfer. Therefore, it lowers moisture content down to 2% in continuous production loops.

Standard VFBD Machine Configurations:

• Junior VFBD: Processing capacity ranges from 250 kg/hr to 300 kg/hr finished output.

• Standard VFBD: Processing capacity ranges from 500 kg/hr to 550 kg/hr finished output.

• Jumbo VFBD: Processing capacity ranges from 700 kg/hr to 800 kg/hr finished output.

• Super Jumbo VFBD: Processing capacity ranges from 850 kg/hr to 1,000 kg/hr finished output.

Continuous Industrial Spray Drying Systems

Spray Dryer Systems turn liquid solutions, emulsions, and suspensions into uniform powders. Moreover, this happens within a single continuous process step.

Processing Sequence for Spray Dryer Systems:

1. First: High-pressure feed pumps push liquid solutions directly to the top atomizer unit.

2. Second: Rotary disks spinning at up to 25,000 RPM break liquid into millions of fine micro-droplets. Meanwhile, droplet sizes range from 20 to 150 microns.

3. Third: Atomized droplets mix instantly with conditioned hot air inside the primary drying tower.

4. Fourth: Water evaporates in milliseconds as droplets fall through the drying chamber. Because of evaporative cooling, droplet temperatures stay low.

5. Finally: High-efficiency cyclones separate dry powder from the air stream. Subsequently, exhaust air passes through scrubbers while dry powder harvests at the base.

Key Process Benefits:

• Precision Atomization: Rotary disks or pressure nozzles transform liquid feed into fine micro-droplets inside the tower.

• Instantaneous Vaporization: High surface area allows hot air to flash-evaporate moisture within milliseconds.

• Powder Harvesting: Cyclones and sanitary bag filters harvest fine powder cleanly. In addition, scrubbed air discharges safely into the atmosphere.

Rotary Drum Dryer Systems

The Rotary Drum Dryer provides heavy-duty drying for bulk solids, mineral ores, agricultural residues, and industrial sludge.

Processing Sequence for Rotary Drum Dryers:

1. Initially: Heavy bulk solids enter through a feed chute or screw conveyor into the rotating cylinder.

2. Concurrently: High-velocity hot gas enters co-currently or counter-currently based on material heat limits.

3. Meanwhile: The heavy steel shell rotates continuously on trunnion rollers driven by a girth gear and pinion.

4. As a result: Internal steel flights lift wet material and shower it through the hot air stream in a continuous curtain.

5. Afterward: Moisture-laden gas travels to external cyclones, multiclones, and wet scrubbers.

6. Eventually: Conditioned low-moisture bulk material discharges continuously at the lower inclined end.

Detailed Operating Principles:

Inside an inclined rotating cylinder, custom steel flights lift wet material. Furthermore, they shower it continuously through high-velocity hot gas. Consequently, this cascading curtain maximizes surface area exposure to drive rapid moisture loss during high-tonnage runs.

3. Specialized Thermal Dehydration Systems

Specialized thermal designs handle unique material parameters, viscosities, and heat sensitivities across diverse manufacturing lines:

• Apron Band / Mesh Belt Dryer: Multi-pass perforated conveyor drying for shredded coconut, vegetables, spices, and biomass pellets. In addition, it offers multi-stage thermal zoning at capacities up to 1,600 kg/hr.

• Combination Fluid Bed Dryer: Combines static tray drying zones with an active fluid bed stage. As a result, it manages complex drying curves for sticky or heat-sensitive compounds.

• Continuous Thin Film Dryer: Engineered for high-viscosity pastes and thermal-labile active compounds under precise vacuum conditions.

• Paddle Dryer: Dual counter-rotating shafts feature hollow heated paddles. Thus, it delivers high indirect thermal efficiency for drying chemical sludges, filtration cakes, and hazardous wastes.

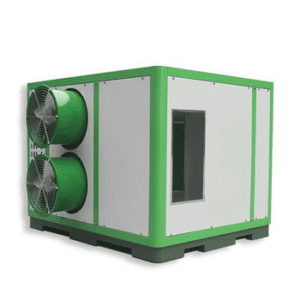

• Heat Pump Dryer: Uses closed-loop dehumidification to capture and recycle latent heat. Therefore, it is ideal for high-value spices, nutraceuticals, and botanicals at low temperatures.

• Flash Dryer: Uses pneumatic conveying streams for near-instantaneous moisture reduction in fine starches, mineral powders, biopolymers, and agro-residues.

4. Turnkey Agro-Industrial Processing: Coconut Derivatives

A prime example of turnkey engineering is a complete Turnkey Desiccated Coconut Processing Plant.

Processing Sequence for Turnkey Desiccated Coconut Production:

1. First step: Whole coconuts are inspected, sorted, and elevated to processing stations on belt conveyors.

2. Next step: Mechanical stations strip outer husks and hard shells cleanly without damaging inner coconut meat.

3. Third step: Operators pare away dark skin to expose pure white coconut meat. Immediately after, workers submerge pared meat in chilled water.

4. Fourth step: Pared white kernels pass through high-pressure bubble washers and sanitizing drums for complete microbial control.

5. Fifth step: Cleaned kernels enter heavy-duty cutters to produce fine, medium, or coarse shreds based on target market specs.

6. Sixth step: Continuous steam blanchers sanitize shredded coconut at 90°C to 95°C. Thus, this eliminates pathogens while protecting natural oil structures.

7. Seventh step: Shreds enter an Apron Band Dryer or Vibratory Fluid Bed Dryer. Consequently, systems drop moisture from 55% to 2% using multi-zone heating profiles.

8. Final step: Multi-deck screens classify cooled desiccated coconut into uniform particle sizes before automated packaging into export containers.

Beyond desiccated coconut, specialized processing lines power other valuable coconut derivative chains:

• Virgin Coconut Oil (VCO) & VCO Powder Plants: Low-temperature extraction paired with spray drying converts cold-pressed coconut milk emulsions into stable, shelf-stable VCO powders.

• Coconut Milk & Powder Processing Plants: Evaporators and sanitary spray drying towers convert fresh coconut extracts into instant, fully soluble coconut milk powders.

• Coir Fibre & Coir Peat Processing Systems: Heavy-duty rotary drum and belt dryers process raw coconut husks and coir pith into export-grade horticultural substrate blocks.

5. Industrial Application Spectrum

Modern thermal drying systems adapt to specific material parameters across major industrial sectors:

• Pharmaceuticals & Fine Chemicals: High-purity Specialty Chemical Drying Systems and closed-loop nitrogen systems safely dry solvent-laden powders, catalysts, and active intermediates.

• Food & Dairy Processing: Sanitary Food Ingredient Dryers, Dairy Protein Drying Systems, and dedicated processing plants for Date Syrup, Paste, and Powder Processing.

• Agro-Commodities & Biomass: High-efficiency equipment including Grain Dryers, Biomass Fuel Dryers, and continuous Poultry Feed Drying Systems.

• Minerals & Construction Materials: Heavy-tonnage units including Sand Drying Systems, Gypsum Dryers, and automated Salt Drying Systems.

• Environmental & Waste Remediation: Thermal volume reduction and mass minimization via high-capacity Industrial Sludge Dryers and Paper Mill Sludge Dryers.

6. Technical Equipment Comparison

7. Deep Engineering Selection Framework

Selecting the optimal thermal dehydration equipment requires evaluating core physical and chemical parameters during process design:

Engineering Selection Logic Flow:

1. Identify Physical Feed State:

   • If the feed is a Pumpable Liquid, evaluate heat sensitivity:

     • For example, heat-sensitive liquid feeds require a Refractance Window Dryer (RWD).

     • Conversely, standard liquid feeds perform best in a Continuous Spray Dryer.

   • If the feed consists of Wet Granules, Shreds, or Crystals, evaluate handling constraints:

     • On one hand, applications requiring gentle physical handling select a Vibratory Fluid Bed Dryer (VFBD).

     • On the other hand, high-tonnage bulk materials with variable particle sizes select a Rotary Drum Dryer.

   • If the feed is a Viscous Sludge, Paste, or Wet Cake, evaluate heating requirements:

     • Materials requiring indirect thermal heating or solvent recovery select a Paddle Dryer.

     • In contrast, materials suitable for rapid pneumatic moisture stripping select a Flash Dryer.

2. Thermal Sensitivity & Kinetics: Biological extracts, pharmaceuticals, and high-sugar purees require low-temperature, gentle heating profiles. Consequently, this prevents degradation, caramelization, or loss of volatile aromatic compounds.

3. Moisture Profile & Drying Stages: High initial moisture levels often require multi-stage thermal processing. Specifically, processors use an Apron Band Dryer for primary moisture reduction followed by a Fluid Bed Dryer for final moisture stabilization.

4. Energy Optimization & Environmental Hygiene: Modern installations incorporate exhaust heat exchangers, multi-stage cyclone dust collection, automated CIP systems, and closed-loop nitrogen systems to comply with modern environmental standards.

8. Energy Efficiency, Waste Heat Recovery & Decarbonization

Energy efficiency is a primary design factor in modern thermal drying systems. Water vaporization requires significant energy (~2,260 kJ per kilogram of water evaporated). Therefore, optimizing thermal efficiency directly reduces operational overhead and carbon footprint.

Processing Sequence for Exhaust Waste Heat Recovery:

1. First: Warm, moisture-laden exhaust gas exits the primary drying tower.

2. Next: High-efficiency cyclones filter out fine particulates and airborne dust.

3. Then: The cleaned hot exhaust gas transfers residual thermal energy to an incoming stream of fresh ambient air.

4. Afterward: Scrubbed, cooled exhaust gas discharges safely through the plant stack.

5. Finally: Pre-heated fresh air enters the main burner. As a result, this cuts fuel consumption required to reach operational temperatures.

Advanced Heat Recovery Strategies:

• Air-to-Air Heat Exchangers: Systems extract energy from warm exhaust air to preheat fresh intake air. Consequently, this reduces fuel consumption by 15% to 25%.

• Closed-Loop Dehumidification: Heat pumps capture latent heat from condensing water vapor. In turn, they reintroduce sensible heat directly back into the drying loop.

• Variable Frequency Drives (VFDs): Dynamic motor speed controls on supply and exhaust fans match airflow to material loading. Thus, this prevents energy waste during partial-load conditions.

• Thermal Insulation Enclosures: High-density rockwool and ceramic fiber panels minimize heat loss through shell surfaces.

9. Regulatory Compliance, Hygiene & cGMP Standards

Processing plants in food, dairy, nutraceutical, and pharmaceutical sectors must meet stringent international hygienic standards. Therefore, engineering designs must eliminate dead zones, prevent microbial growth, and facilitate complete cleaning protocols.

• cGMP & US FDA Compliance: Contact surfaces constructed from mirror-polished SS316L stainless steel (Ra < 0.4 µm) prevent material buildup and cross-contamination.

• Automated CIP Systems: Integrated spray balls and sanitary distribution manifolds enable full automated washing, rinsing, and sanitization without dismantling equipment.

• Dust Control & Emission Limits: High-efficiency sanitary bag filters and multi-cyclones keep particulate emissions below strict local environmental limits (< 10 mg/Nm³).

10. Operational Troubleshooting & Preventive Maintenance

Maintaining peak operational uptime requires proactive maintenance schedules and systematic troubleshooting routines.

Symptom / Defect	Potential Root Cause	Recommended Corrective Action
High Final Moisture Content	Insufficient inlet air temperature; excessive feed rate; high ambient humidity	Reduce feed pump rate; increase air heating output; verify exhaust humidity sensors
Product Thermal Degradation	Extended residence time; excessive drying air temperature; uneven material bed depth	Lower inlet temperature; adjust vibratory frequency or belt speed to decrease residence time
Uneven Drying Across Material Bed	Poor air distribution; clogged distributor plate; non-uniform feed distribution	Clean distributor deck perforations; inspect feed spreader alignment; balance air plenum pressures
Excessive Fines in Exhaust Stream	Air velocity above fluidization threshold; material attrition due to harsh vibration	Reduce air velocity fan speed; decrease vibratory motor amplitude

11. Custom System Design & Scalability

Every manufacturing operation presents unique challenges regarding floor space, utility access, raw material variations, and output targets. Therefore, partnering with a custom engineering manufacturer ensures that equipment design matches specific process needs.

Turnkey Project Execution Sequence:

1. Step 1: Material samples undergo pilot scale testing to determine precise drying curves and thermal behavior.

2. Step 2: Engineers model exact energy requirements, air volumes, and heat balances.

3. Step 3: CAD modeling creates tailored equipment layouts fitting exact plant dimensions.

4. Step 4: Field engineers supervise mechanical installation, electrical integration, and final performance trials.

Detailed Engineering Workflow:

1. Material Testing & Rheology Analysis: Pilot testing determines specific drying curves, thermal sensitivity thresholds, and equilibrium moisture content.

2. System Mass & Energy Balance: Engineers compute precise mass and heat balances to select the optimal heating medium (steam, thermal oil, hot water, or direct gas).

3. Custom Fabrication: Equipment is built using certified food-grade stainless steel with specialized structural reinforcements.

4. Turnkey Site Installation: Complete mechanical, electrical, and control integration ensures seamless startup and commissioning.

Conclusion & Partnering with Industry Experts

Optimizing thermal drying operations across food, pharmaceutical, chemical, and waste management sectors requires a partner who understands process engineering, thermal dynamics, and hygienic manufacturing standards. With over four decades of global engineering excellence, GENEX Tech Industries LLP designs, manufactures, and commissions custom industrial drying machines and turnkey plants built for long-term performance.

Whether launching a new processing line, upgrading existing dryers to reduce energy consumption, or expanding output capacity, our engineering team provides end-to-end technical support from pilot testing to final site commissioning.
